6040 UV-Curable Adhesive

6040

Overview

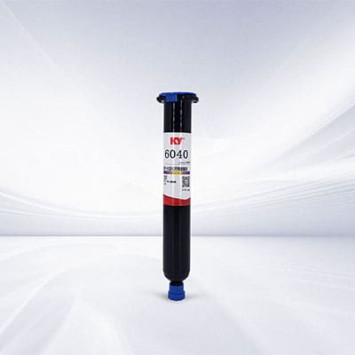

6040 UV-Curable Adhesive

 is the perfect bonding solution for electronics manufacturing and audio assembly! This high-viscosity, thixotropic adhesive, in a red color, provides excellent adhesion to most substrates. It is specifically designed for bonding voice coil diaphragms in small speakers and for general solder joint protection. The 6040 offers high strength and fast-curing adhesion, meeting the stability and visual distinguishability demands of industrial users.

Features

  • Color: Red
  • Viscosity: 25,000 ~ 35,000 MPa·s
  • Cure Depth: ≥4 mm
  • Hardness: Not specified
  • Shear Strength (PC/PC): ≥18 Mpa

Product Overview

Product Model Colour Viscosity MPa.s Curing Depth mm Hardness Shore Shear Strength (PC/PC) MPa
Q3311 Transparent 200~400 ≥4 64D ≥18
UV3385 Light Amber Transparent Liquid 18000~24000 ≥2 60D ≥4
6011 Transparent 4000~5000 ≥4 53D ≥18
6012 White 25000~35000 ≥4 65±7D ≥18
6022 Light Blue 25000~35000 ≥2 50±70D ≥18
6023 Light Yellow 8000~9300 ≥4 60±70D ≥15
6024 White 15000~25000 ≥1 55±5D ≥12
6035 Blue 17500~22000 ≥2 60D ≥18
6037 White 11000~18000 ≥0.5 55±5D ≥12
6040 Red 25000~35000 ≥4   ≥18
6048 Light Yellow 10000~20000 >3.5 30D >12
6050 Milky White 20000~30000 2.0~2.6 70~80D >5
6070 Black 4000   58D 18
6075 Transparent 253 >3.5 88D
6085HV Red 25000~35000 ≥0.8 70±5D ≥17
6086 White 20000~30000 ≥1 80±5D ≥12
6233 Light Yellow Transparent 3500~6500 ≥1 70±5D ≥15
6311 Colourless Transparent 4400   55
6341 Transparent to Hazy 80~220 ≥1.8 55 (Shore 00)
6342 Transparent to Hazy Amber 900~1600 ≥1.5 67D ≥10
6345 Light Yellow Transparent 1000~2000 ≥2.5 76D
6412 White 25000~35000 ≥1 70D ≥17
6433 Black 8000~12000 ≥0.5 70±5D ≥15
6612 White 20000~35000 ≥1 25~40D ≥12
